Frontmotor für E-Bike 250 Watt mit Schnellverschluß

89,95 € * 249,95 € * (64,01% gespart)

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage

  • XF1403FB0473
XOFO E-Bike Frontmotor 250 W mit Schnellverschluß... mehr
Produktinformationen "Frontmotor für E-Bike 250 Watt mit Schnellverschluß"

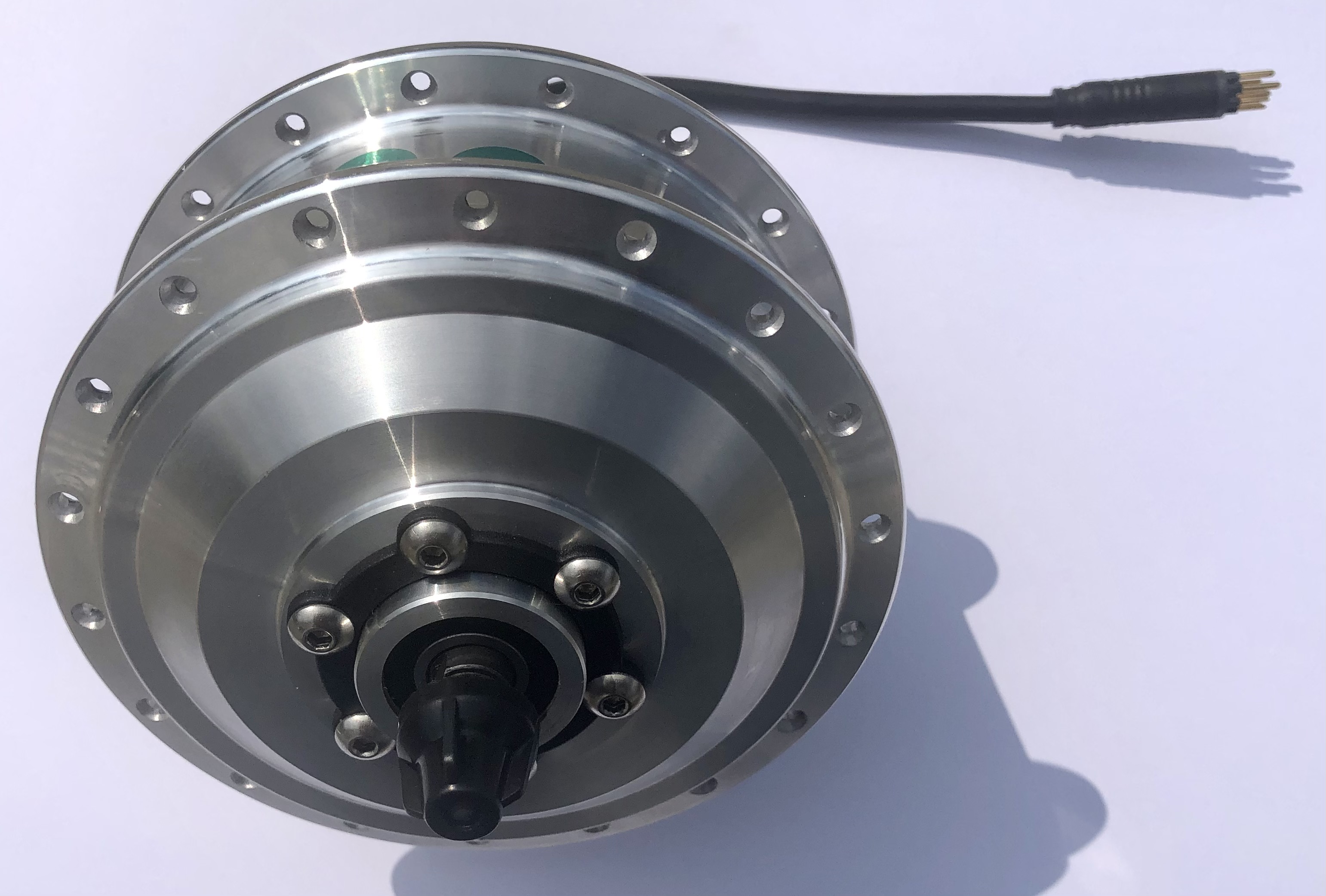

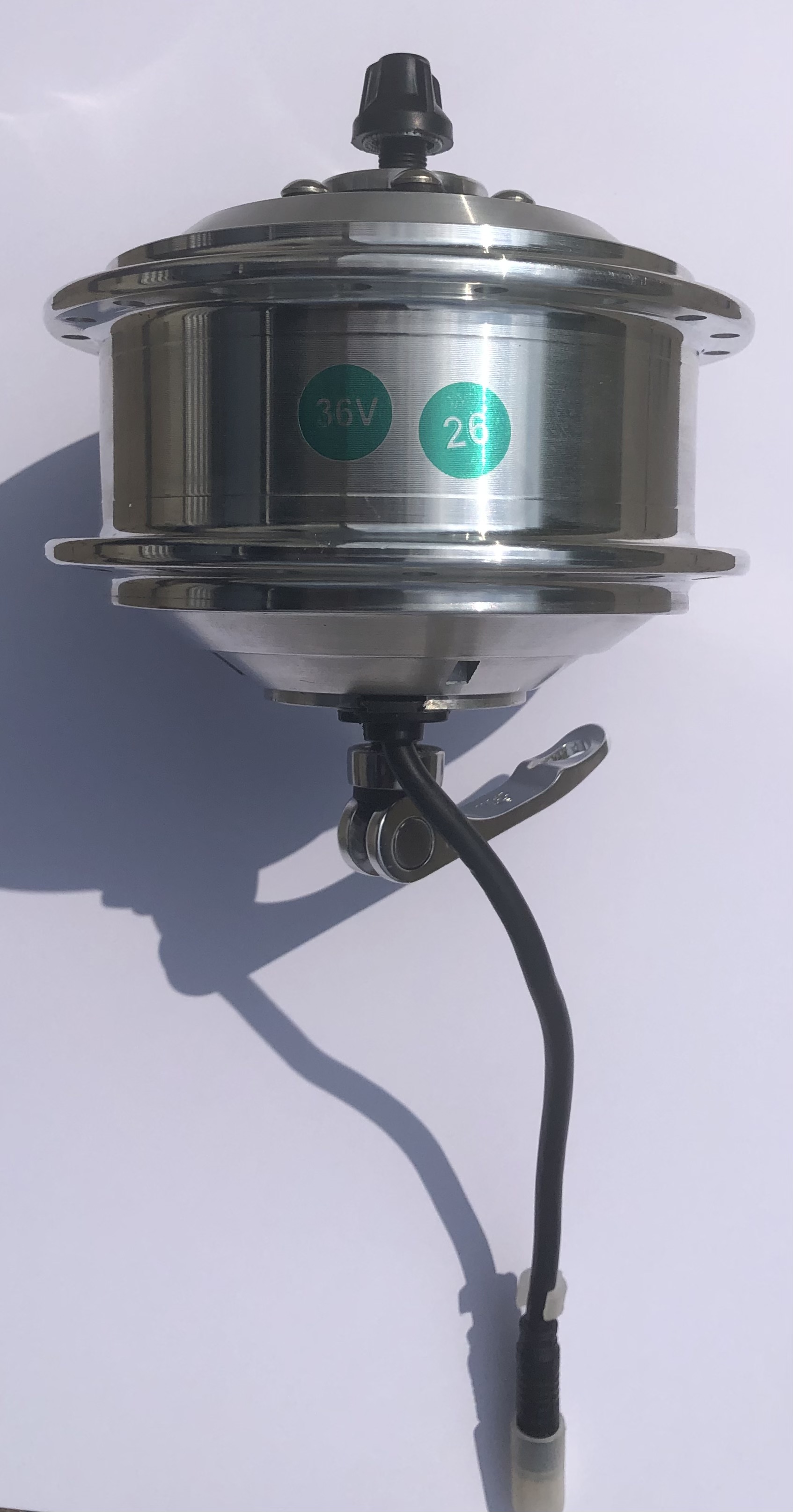

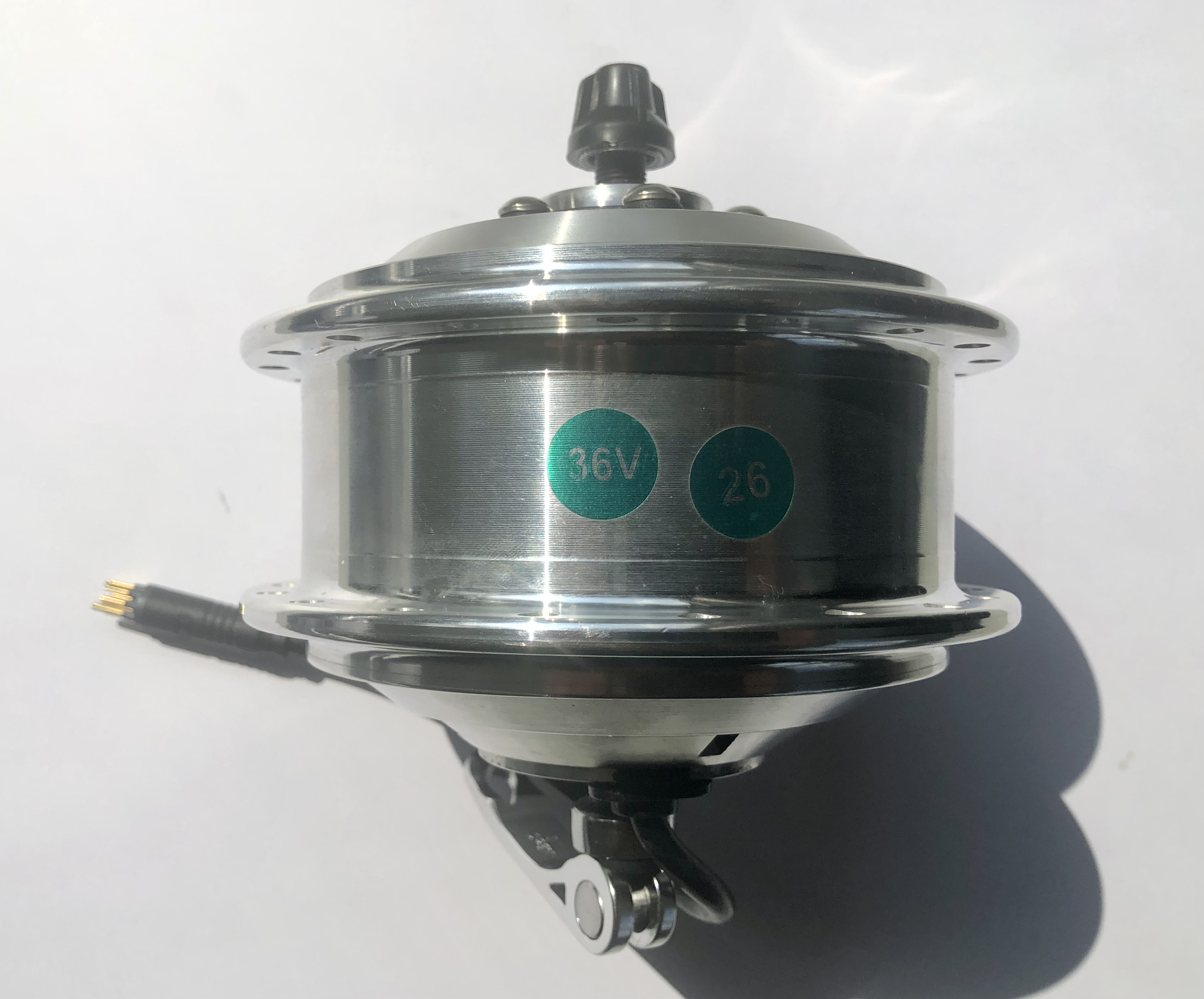

XOFO E-Bike Frontmotor 250 W mit Schnellverschluß

Allgemeines:

Der Frontmotor ist in der Fahrrradgabel im Vorderrad befestigt. Da sich der Motor vorne und der Akku in der Regel hinten befindet, hat das Fahrrad eine gute Gewichtsverteilung. Dies ermöglicht ein leichtes Fahren des Bikes und dessen optimale Balance. Der eingschaltete Motor zieht das Fahrrad vorwärts, sobald mit dem Treten in die Pedale begonnen wird. Dies ermöglicht ein schnelles Losfahren.


General:

The front motor is mounted in the bicycle fork in the front wheel. Since the motor is at the front and the battery is usually at the rear, the bike has a good weight distribution. This allows the bike to be ridden easily and to be optimally balanced. The switched-on motor pulls the bike forward as soon as you start pedalling. This makes it possible to get going quickly.


Technische Details / Technical details:
  • Bauart / Type: Getriebemotor mit Freilauf / Geared Motor with freewheel
  • Spannung / Voltage: 36V
  • Nennleistung / Rated Power: 250W
  • Geschwindigkeit / Speed: 25 km/h
  • Drehmoment max / Torque max: 30 N.m
  • Wirkungsgrad / Maximum Efficiency: ≥ 81
  • Radgröße / Wheel Size: 24 - 29"
  • Motordurchmesser / Diameter Motor: ~ 120 mm / 4,72 inches
  • Einbaubreite / Installation width: 100 mm / 3,94 inches
  • Gewicht / Weight: ~ 2,7 kg / ~ 5,95 lbs

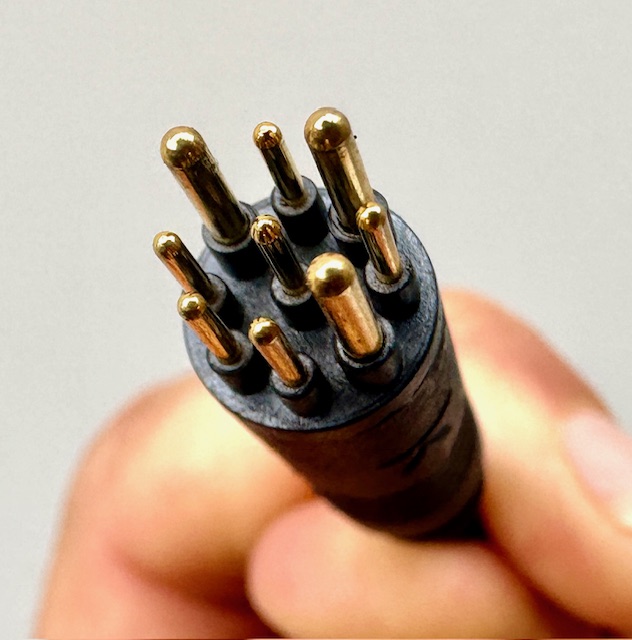

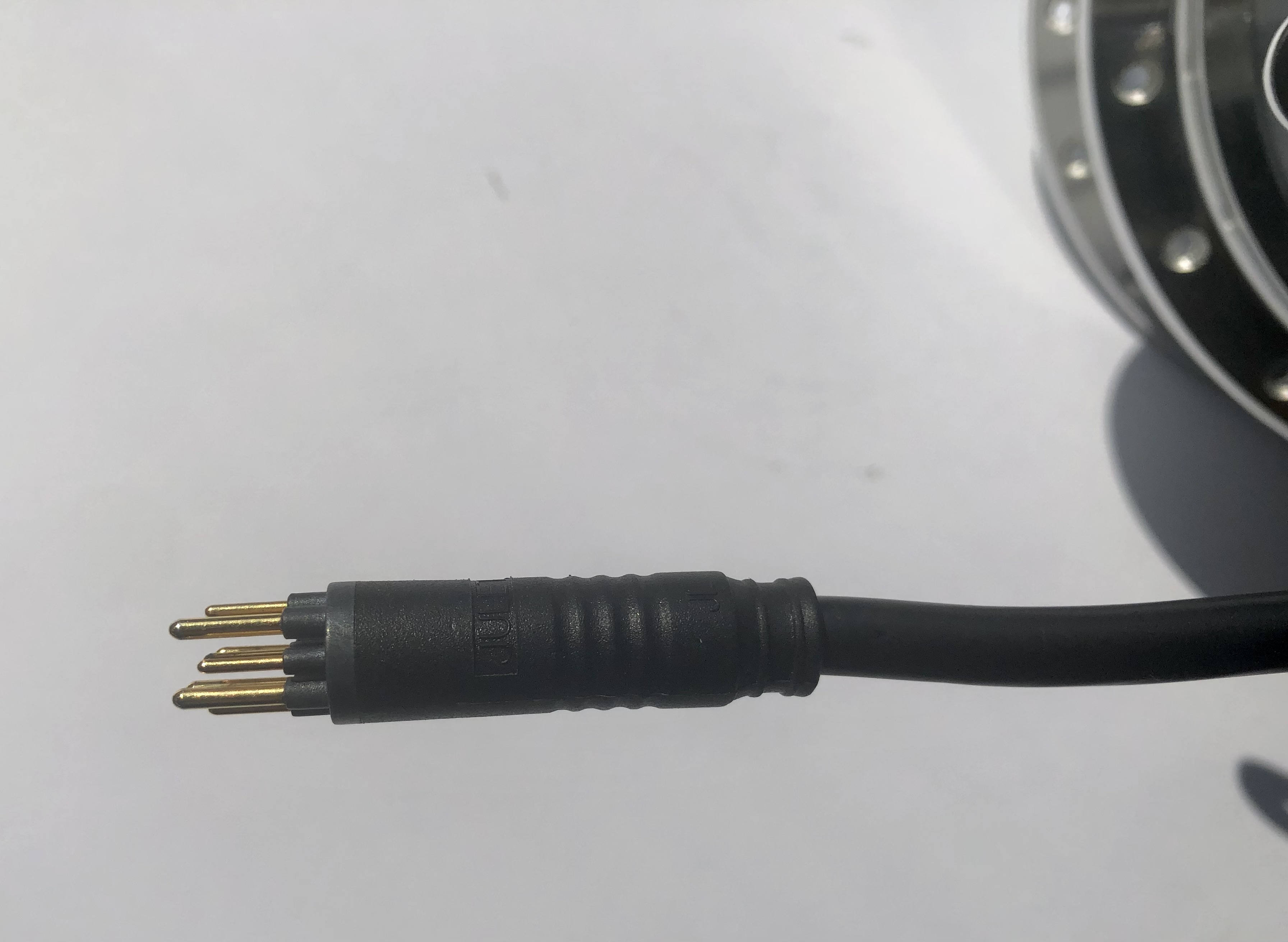

  • Motoranschluss / Motor connection: 9-Pin
  • Betriebstemperatur / Working Temperature: -20°C - 45°C
  • Speichen / Spokes: 12G + 13G
  • Speichenlöcher / Spoke holes: 36 Löcher / 36 holes
  • Lochkreis Duchmesser: 122,8 mm
  • Bremsen / Brakes: Felgenbremse und Scheibenbremse / Rimbrake and Discbrake
  • Position des Kabels / Cable position: rechts / right
  • Befestigung / Mounting: Schnellspanner / Quick release
  • Farbe / Color: Silber / Silver

Hinweis: Der Motor ist ausgewiesen für eine Radgröße von 26". Auch 24" bis 29" Räder lassen sich hervorragend mit diesem Motor ausstatten.

Hint: The Motor is marked with 26" wheel size. Fits to 24" to 29" wheels as well.
